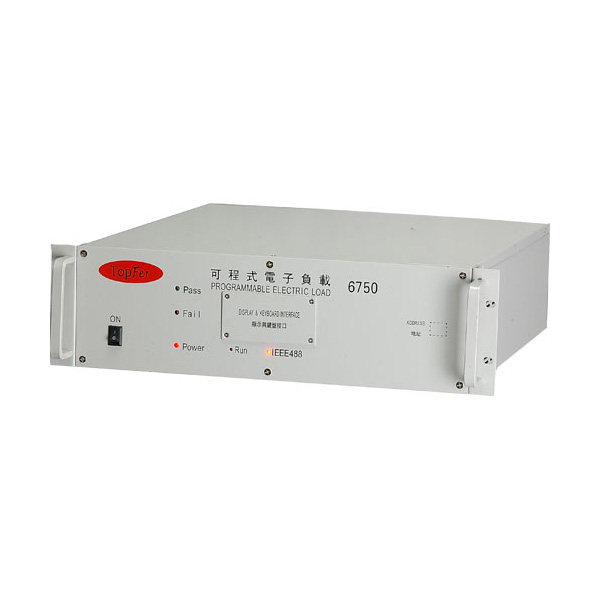

隸屬:創銳裝備智造(西安)股份有限公司(股票代碼:836029)型號:TopFer 6700
類別:電源測試解決方案
| Max.power | 6720: 200W | Max.voltage | 100V | |||||
6750: 300W | |||||||||
| Min.operating | 6720: 1V@1A,2V@20A | 6750: 1V@1A,3V@50A | ||||||
Load current | Range | 6720: 0-1A/0-20A | Resolution | 12bits | |||||
6750: 0-1A/0-50A | |||||||||
Accuracy(250C) | 0.2%+2%[email protected]=A,0.2%+0.7%[email protected]=50A | ||||||||
Tc | 50PPm/c | Overshoot | 0.5%F.S | ||||||
Load resistance | Range(If.s=1A) | 1.001-1000ohm | Range(If.s=20A) | 6720: 0.070-1000ohm | |||||
| 0.030-800ohm | Range(If.s=50A) | 6750: 0.030-800ohm | ||||||
Resolution | 12 bits | Tc | 50ppm/0C | ||||||
Accuracy(250C) | 0.2%+2% F.S. @If.s=1A | Accuracy(250C) | 0.6%+0.7% F.S. @If.s=50A | ||||||
Slew rates | Range(If.s=1A) | 1-50mA/us | Range(If.s=20A) | 6720: 2-1000mA/us | |||||
Range(If.s=50A) | 6750: 5-2500mA/us | ||||||||
Resolution | 12 bits | Accuracy | 5% | ||||||
Dynamic period | Range | 4uS-10uS | Resolution | 1uS | |||||
Accuracy | 1uS+100PPM |
|
| ||||||
Timings | Range | 0-16sec/0-1000sec | Resolution | 256uS/25mS | |||||
Accuracy | 1uS+100PPM |
|
| ||||||
EXT.wave input | Range | 0-10V | Transfer ratio | 0.1A/V @If.s=1A | |||||
0.2% @If.s=1A | |||||||||
Basic test NO. | 8 | Accuracy | 5.0A/V @If.s=50A | ||||||
0.6% @If.s=50A | |||||||||
DC voltage | Range | 6720: 0-10V/0-100V | Accuracy | 0.05% F.S @Vf.s=10V | |||||
6750: 0-20V/0-100V | |||||||||
Resolution | 14 bits | 0.02%+0.05% F.S @Vf.s=100V | |||||||
Pk-Pk ADC | Range | 0-10V/0-100V | Accuracy | 0.05% F.S @Vf.s=10V | |||||
Resolution | 12 bits | 0.02%+0.05% F.S @Vf.s=100V | |||||||
Freq. | 25Hz-20 KHz |
|
| ||||||
Pk-Pk detector | Range | 0-1V/0-10V | Accuracy | 14 bits | |||||
Resolution | 1%+10mV | Freq. | 25Hz-1000 KHz | ||||||
RMS noise | Range | 0-1V/0-10V | Resolution | 14 bits | |||||
Accuracy | 1%+10mV | Freq. | 25Hz-1000 KHz | ||||||
Current | Range | 6720: 0-1A/0-20A | Accuracy | 0.2%+2% F.S. @1A | |||||
6750: 0-1A/0-50A | |||||||||
Resolution | 14 bits | 6720: 0.2%+2%[email protected]=A, | |||||||
6750: 0.2%+0.7%[email protected]=50A | |||||||||
Timing | Range | 0-16 sec | Resolution | 1 us | |||||
Accuracy | 10us+100PPM |
|
| ||||||
Constant Volbage | Range | 1-50V | Accuracy | 0.07%+0.08% F.S @Vf.s=10V | |||||
Resolution | 14 bits | 0.07%+0.08% F.S @Vf.s=100V |
