19年行業經驗,能源測試解決方案專家

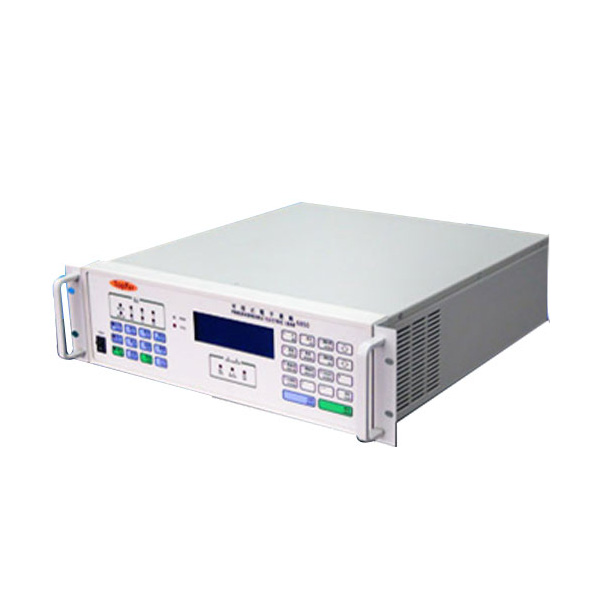

隸屬:創銳裝備智造(西安)股份有限公司(股票代碼:836029)型號:TopFer 6800
類別:電源測試解決方案
Specifications | |||
| Max.power | Max.voltage | Min.operating |
| 300w | 100V | 1.0V @1A |
|
|
| 3.0V @50A |
Load current | Range | Resolution | Accuracy(250C) |
0-1A/0-50A | 12 bits | 0.2%+2% F.S. @If.s=1A | |
|
| 0.2%+0.7% F.S. @If.s=50A | |
Tc | Overshoot |
| |
50ppm/c | 0.5%F.S |
| |
Load resistance | Range(If.s=1A) | Range(If.s=50A) | Resolution |
1.001-1000ohm | 0.030-800ohm | 12 bits | |
Tc | Accuracy(250C) | Accuracy(250C) | |
50ppm/0C | 0.2%+2% F.S. @If.s=1A | 0.6%+0.7% F.S. @If.s=50A | |
Slew rates | Range(If.s=1A) | Range(If.s=50A) | Resolution |
1-50mA/us | 5-2500mA/us | 12 bits | |
Accuracy |
|
| |
5% |
|
| |
Dynamic period | Range | Resolution | Accuracy |
4uS-10uS | 1uS | 1uS+100PPM | |
Timings | Range | Resolution | Accuracy |
0-16sec/0-1000sec | 256uS/25mS | 1uS+100PPM | |
EXT.wave input | Range | Transfer ratio | Accuracy |
0-10V | 0.1A/V @If.s=1A | 0.2% @If.s=1A | |
| 5.0A/V @If.s=50A | 0.6% @If.s=50A | |
Basic test NO. |
|
| |
8 |
|
| |
DC voltage | Range | Resolution | Accuracy |
0-10V/0-100V | 14 bits | 0.05% F.S @Vf.s=10V | |
|
| 0.02%+0.05% F.S @Vf.s=100V | |
Pk-Pk ADC | Range | Resolution | Accuracy |
0-10V/0-100V | 12 bits | 0.05% F.S @Vf.s=10V | |
|
| 0.02%+0.05% F.S @Vf.s=100V | |
Freq. |
|
| |
25Hz-20 KHz |
|
| |
Pk-Pk detector | Range | Resolution | Accuracy |
0-1V/0-10V | 14 bits | 1%+10mV | |
Freq. |
|
| |
25Hz-1000 KHz |
|
| |
RMS noise | Range | Resolution | Accuracy |
0-1V/0-10V | 14 bits | 1%+10mV | |
Freq. |
|
| |
25Hz-1000 KHz |
|
| |
Current | Range | Resolution | Accuracy |
0-1A/0-50A | 14 bits | 0.2%+2% F.S. @1A | |
|
| 0.2%+0.7% F.S. @51A | |
Timing | Range | Resolution | Accuracy |
0-16 sec | 1 us | 10us+100PPM | |
Constant Volbage | Range | Resolution | Accuracy |
1-50V | 14 bits | 0.07%+0.08% F.S @Vf.s=10V | |
|
| 0.07%+0.08% F.S @Vf.s=100V |
